Production Setup

Info:

For production we provide currently three different default setups or examples, a fully bundled setups with and without TLS termination and one as an example for a cloud based setup with kubernetes kind example configurations.

Note

Since SEB Server version 2.0 there are two new services that are included within the SEB Server installation but simplified setup process completely based on Docker-Compose for bundled setups, pulling images from Dockerhub.

If you already have a SEB Server installation and want to migrate from a former installation with major version 1.X to the new major version 2.x, please consult the Major Version Migration Guide

The bundled setups are used to bundle the whole SEB Server setup and all its services together for deploying on one host machine or virtual host machine. This is accomplished with a docker-compose bundle consisting of the MariaDB database, all SEB Server service components and a reverse proxy to communicate with the outside. All service container are connected within a docker network and for default only the reverse proxy is exposed to the outside.

Note

This new bundled solution now uses only one HTTP port and addresses the different services by sub-path-routing done by the reverse proxy.

The first bundled solution, called just “bundled”, implements no TLS termination and can be used, if the host or virtual host itself already do a TLS termination with SSL certificate handling and all needed forwarding. In this case, the reverse proxy within the bundles setup only does the internal sub-path routing to the respective internal services.

The second bundled solution, called “bundled_ssl”, implements a TLS termination with the included reverse proxy service that also does the sub-path routing to internal services.

The setup process for both is similar, expect that for the bundled_ssl setup, you need to provide valid TLS certificates.

Note

If you use TLS certificated for HTTPS, you need to use valid certificates and not self-signed once, otherwise some services are not able to communicate properly and external systems that use to connect to SEB Server might deny the connection to SEB Server with a self singed certificate

Bundled Setup with or without TLS termination

This is the preferred way to setup a bundled SEB Server instance where all components run together within the same machine or host and within the same docker network. A simple and integrated MariaDB setup that uses just the official MariaDB Docker image, and a reverse proxy using the official nginx:latest Docker image. This setup uses docker compose to build and run all needed containers. The docker image for SEB Server is been downloaded from docker hub.

installation strategy sub-directory.........docker/prod/bundled/ or docker/prod/bundled_ssl/
seb-server configuration..................../config/spring
maria-db configuration......................config/mariadb
reverse-proxy configuration................./config/nginx
jmx configuration.........................../config/jmx
single server setup.........................yes
secured (TLS)...............................docker/prod/bundled_ssl/ (needs own TLS certificates)
integrated mariadb service..................yes (can be configured to connect to external DB)
initial data setup..........................auto generated Institution and SEB Administrator
data setup on reload........................Spring - Flyway migration setup
integrated reverse proxy....................yes, with sub-path routing ()and TLS termination if needed)
recommended machine requirements............CPU: x86_64/4 Cores/2-3 GHz, Mem 32GB, Disk Space min 100GB

Requirements:

• Git installation if not already installed

• Docker installation if not already installed

Note

The newest versions of Git and Docker are recommended. For installation see:

- Git : https://www.atlassian.com/git/tutorials/install-git

- Docker : https://docs.docker.com/install/

- Docker-Compose : https://docs.docker.com/compose/install/

Setup:

This setup contains a docker-compose.yml file that orchestrates the setup of the needed containers/services and a configuration sub-directory for all needed components. The docker image for SEB Server will be automatically fetched from docker-hub. For MariaDB the official public image is used to build-up the MariaDB server service. The setup also contains a .env File that contains all settings that needs to be set to run with the default configuration.

Configuration

The configuration for each service is located in the local /config directory separated by folders for each concern. The “spring” folder contains all the Spring and Spring-Boot based configurations and is used by the seb-server service. The “mariadb” folder contains the usual mariadb configuration file that is loaded from the seb-server-mariadb service on startup. The “nginx” folder contains a usual nginx reverse-proxy configuration and is used by the reverse-proxy service. The “jmx” folder contains JMX related configurations and is also used by the seb-server service if JMX is enabled.

For a reference of the base environment variables see: Base environment variables for services

For more details on how to configure each service see Configuration.

Installation:

1. Login to the target/remote host where the SEB Server demo shall be installed, on windows open a command or PowerShell, create a working directory and navigate into it.

$ mkdir sebserver
$ cd sebserver

2. Get a clone of the seb-server-setup repository and navigate to the demo setup folder

$ git clone -b v1.1-latest https://github.com/SafeExamBrowser/seb-server-setup.git
$ cd seb-server-setup/docker/prod/bundled/dockerhub/

3. Open the existing .env file and apply the needed settings for the setup as the .env file example shows:

SEBSERVER_PWD

• The SEB Server password is needed for various reasons. This password must be always the same and should be securely stored somewhere

DB_SA_PWD

• The super user password for the data base connection. If you don’t want to use the super user to connect to database you need to configure this within the docker-compose file for all services that needs a database connection.

DNS_NAME

• The DNS name where your host is available from the Internet

Note

The passwords must be given also when the service is stopped and restarted again. You can either let the .env file be within the installation directory as is. Or you can delete the .env file from the host and copy or create it again when an update or restart of the container is needed. Note that it is very important that the SEBSERVER_PWD do not change and the same SEBSERVER_PWD is used for updates and restarts as it was for the initial setup. Otherwise data will be lost due to encryption with unknown or incorrect passwords. The password should be in the responsibility of a system administrator and handled with appropriate care.

4. If you use the “bundled_ssl” setup where you want to do TLS termination within the setup, go to the nginx configuration folder and put your own valid SSL certificates to the “cert” subdirectory. The integrated reverse proxy will then use this certificates to secure all given connection ports.

5. Pull the Docker images from Dockerhub

$ docker-compose pull

6. Start the services. If you want to give the needed password here instead within an .env file, you can add them as environment variables within the call

$ docker-compose up -d

or

$ SEBSERVER_PWD=somePassword DB_SA_PWD=passwordForDataBase docker-compose up -d

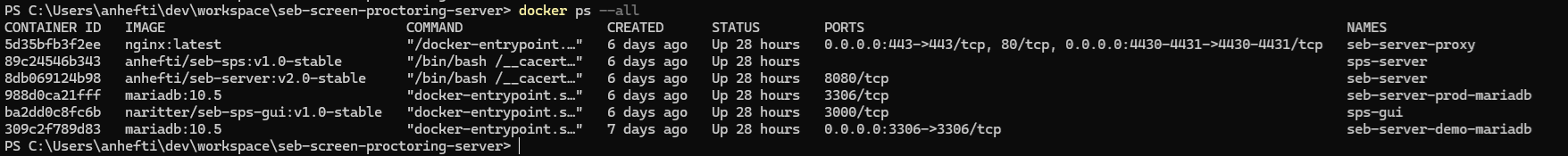

7. Check if the containers are started and running. The output should look something like the following.

$ docker ps --all
$ docker logs ${container name}

8. If there where no changes to the default configuration the SEB Server is now running on http(s)://DNS_NAME There is one pre-configured institution and one user-account with SEB Server Administrator role to manage the server. The username and generated password of the initial admin account can be found on the logs:

$ docker logs seb-server

[SEB SERVER INIT] ---->   ___  ___  ___   ___
[SEB SERVER INIT] ---->  / __|| __|| _ ) / __| ___  _ _ __ __ ___  _ _
[SEB SERVER INIT] ---->  \__ \| _| | _ \ \__ \/ -_)| '_|\ V // -_)| '_|
[SEB SERVER INIT] ---->  |___/|___||___/ |___/\___||_|   \_/ \___||_|
[SEB SERVER INIT] ---->
[SEB SERVER INIT] ----> SEB Server successfully started up!
...
[SEB SERVER INIT] ----> ***********************************************************************************************************************************************************************
[SEB SERVER INIT] ----> SEB Server initial admin-account; name: sebserver-admin, pwd: i![qt}O3mUrCAA7WSZj5`ETRb4kfiy+za_IepZgnBCc^Br9=B%7lWXwcVABOAPJA
[SEB SERVER INIT] ---->
[SEB SERVER INIT] ----> !!!! NOTE: Do not forget to login and reset the generated admin password immediately !!!!
[SEB SERVER INIT] ----> ***********************************************************************************************************************************************************************

For a complete initial log guide pleas read: Setup Initial Log Guide

Note

We highly recommend to change the generated password from the initial admin account immediately after first login.

Bundled Setup with external database

Both of the bundled setups can also be used with an external database. If you want to connect to an external database for eiter one or the other bundled setup, you can remove the database service within the docker-compose.yml file and apply/adapt the database connection details within the services: “seb-server” and “sps-webservice” to connect to your external database with a sufficient user that is able to also create a database schema and has table create and write privileges for that schemas.

Cloud based Kubernetes Kind Example

This setup provides an example for a distributed and scalable cloud setup with Kubernetes and Kind. You can use this as a staring point or template for a Kubernetes based production ready setup.

Note

Kubernetes secrets should never get into Git unencrpyted. This is only an example. One solution to encrypt secrets for Git and decrypt it during deployment into the cluster is [SealedSecrets](https://github.com/bitnami-labs/sealed-secrets).

**Requirements:**

• kind: https://kind.sigs.k8s.io/docs/user/quick-start/#installing-from-release-binaries

• kubectl: https://kubernetes.io/docs/tasks/tools/

• kustomize: https://github.com/kubernetes-sigs/kustomize/releases

Kind, kubectl and kustomize can be installed as binaries so that they are available in the CLI console

Note

Kind = Kubernetes In Docker. So this will work as a kubernetes cluster within a docker-container.

Setup:

The example setup consists of some kind setup descriptors, the kustomization.yaml and a deploy script. The kustomization.yaml file first sets common values which are modified most: image version and replica count. It then uses the base config published in this repository (docker/ethz/cloud/kustomize/) and extends it to a demo deployment.

Configuration

The configuration for each service is located in docker/ethz/cloud/kustomize/config/ directory separated by folders for each service. The different services are webservice, guiservice and mariadb. This corresponds to the three kubernetes services that are setup by this demo. Each service configuration folder contains then separate configuration folder for each individual concern of the service. “spring” folder contains all the Spring and Spring-Boot based configurations and the jmx folder contains configuration for JMX binding (experimental)

For a reference of the base environment variables see: Base environment variables for services

Note

If you need TLS encryption which is specific to your setup environment, please refer to https://cert-manager.io/docs/ There are also some commented placeholder for certificate handling within the file: ingress.yml within the example

Installation:

1. Login to the target/remote host where the SEB Server demo shall be installed, on windows open a command or PowerShell, create a working directory and navigate into it.

$ mkdir sebserver
$ cd sebserver

2. Get a clone of the seb-server-setup repository and navigate to the demo setup folder

$ git clone https://github.com/SafeExamBrowser/seb-server-setup.git -b v1.4-latest
$ cd seb-server-setup/docker/prod/cloud/kind-example

3. If some specific configuration is needed, this can be done within this step. See Configuration for more details on how to configure the services. Spring based configuration settings can be set either in the respective application-prod.properties files in docker/ethz/cloud/kustomize/config/ or via override in docker/demo/cloud/kind-example/kustomization.yml within the respective service.

Note

The spring property names can be override in the respective yml by change the “.” separator with a “_” separator.

4. Create the docker-container with the Kubernetes cluster and initialize Ingress.

• Linux: exec kind_deploy.sh

$ .\kind_deploy

• Windows:

$ kind create cluster --config=kindcluster.yaml
$ kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/static/provider/kind/deploy.yaml

Now you should be able to show the Ingress pods:

$ kubectl get pods -n ingress-nginx

5. Create a namespace for the services:

$ kubectl create ns seb-server-prod

6. Build the services from the template:

$ kustomize build . | kubectl apply -f -

Note

If there is an error on the kustomize startup, make shure the ingress has already started propperly by using: $ kubectl get pods -n ingress-nginx and try again to run the kustomize template.

Now you should be able to show the services, pods and logs with:

$ kubectl get pods -n seb-server-prod
$ kubectl get svc -n seb-server-prod
$ kubectl logs seb-guiservice-prod-[f45588cfc-4944h] -n seb-server-prod

8. If there where no changes to the default configuration the SEB Server is now running on port 80 and can be accessed with a browser on http(s)://server-address There is one pre-configured institution and one user-account with SEB Server Administrator role to manage the server. The username and generated password of the initial admin account can be found on the webservice logs:

[SEB SERVER INIT] ---->   ___  ___  ___   ___
[SEB SERVER INIT] ---->  / __|| __|| _ ) / __| ___  _ _ __ __ ___  _ _
[SEB SERVER INIT] ---->  \__ \| _| | _ \ \__ \/ -_)| '_|\ V // -_)| '_|
[SEB SERVER INIT] ---->  |___/|___||___/ |___/\___||_|   \_/ \___||_|
[SEB SERVER INIT] ---->
[SEB SERVER INIT] ----> SEB Server successfully started up!
...
[SEB SERVER INIT] ----> ***********************************************************************************************************************************************************************
[SEB SERVER INIT] ----> SEB Server initial admin-account; name: sebserver-admin, pwd: i![qt}O3mUrCAA7WSZj5`ETRb4kfiy+za_IepZgnBCc^Br9=B%7lWXwcVABOAPJA
[SEB SERVER INIT] ---->
[SEB SERVER INIT] ----> !!!! NOTE: Do not forget to login and reset the generated admin password immediately !!!!
[SEB SERVER INIT] ----> ***********************************************************************************************************************************************************************

Note

We highly recommend to change the generated password from the initial admin account immediately after first login.

9. You can delete the whole kind cluster with:

$ kind delete cluster

Base environment variables for services

Base environment variables sebserver webservice

---

JAVA_HEAP_MIN

• Minimum heap memory space given to the JVM process

JAVA_HEAP_MAX

• Maximum heap memory space given to the JVM process

sebserver_password

• SEB Server internal password for encryption. NOTE: This password must be the same vor all webservice and gui instances

spring_profiles_active

• SEB Server profiles. For a productive webservice setup “ws,prod-ws,prod”

spring_datasource_password

• password for MariaDB database

spring_datasource_username

• MariaDB user name

datastore_mariadb_server_address

• MariaDB server hostname

datastore_mariadb_server_port

• MariaDB port

sebserver_webservice_http_external_scheme

• Webservice external URL scheme (http/https)

sebserver_webservice_http_external_servername

• Webservice external URL host name

sebserver_webservice_http_external_port

• Webservice external URL port (empty for default http(80) https(443))

sebserver_webservice_autologin_url

• External URL from where the sebserver guiservice is available. See also sebserver_gui_http_external_servername

sebserver_feature_exam_seb_screenProctoring_bundled_url

• The URL on which the screen proctoring webservice is externally available

sps_sebserver_client_secret

• SEB Servers client secret to connect to screen proctoring service. This must match with the sebserver_client_secret setting in screen proctoring (sps) webservice

sps_sebserver_password

• SEB Servers screen proctoring service maintenance account password. This must match with the same setting in screen proctoring (sps) webservice

Base environment variables sebserver guiservice

---

JAVA_HEAP_MIN

• Minimum heap memory space given to the JVM process

JAVA_HEAP_MAX

• Maximum heap memory space given to the JVM process

sebserver_password

• SEB Server internal password for encryption. NOTE: This password must be the same vor all webservice and gui instances

spring_profiles_active

• SEB Server profiles. For a productive guiservice setup “gui,prod-gui,prod”

sebserver_gui_http_external_scheme

• Guiservice external URL scheme (http/https)

sebserver_gui_http_external_servername

• Guiservice external URL host name

sebserver_gui_http_external_port

• Guiservice external URL port (empty for default http(80) https(443))

sebserver_gui_http_webservice_scheme

• Webservice external connection URL scheme (http/https)

sebserver_gui_http_webservice_servername

• Webservice external connection URL host name.

sebserver_gui_http_webservice_port

• Webservice external connection URL port (empty for default http(80) https(443))

Base environment variables screen proctoring (sps) webservice

---

JAVA_HEAP_MIN

• Minimum heap memory space given to the JVM process

JAVA_HEAP_MAX

• Maximum heap memory space given to the JVM process

sebserver_password

• SEB Server internal password for encryption. NOTE: This password must be the same vor all webservice and gui instances

spring_profiles_active

• SEB Server profiles. For a productive webservice setup “prod”

spring_datasource_password

• password for MariaDB database

spring_datasource_username

• MariaDB user name

datastore_mariadb_server_address

• MariaDB server hostname

datastore_mariadb_server_port

• MariaDB port

sps_data_store_adapter

• Image (Screenshots) data store adapter. “FULL_RDBMS” for storing images into DB or “S3_RDBMS” for S3 compatible storage

sps_webservice_http_external_scheme

• Webservice external URL scheme (http/https)

sps_webservice_http_external_servername

• Webservice external URL host name

sps_webservice_http_external_port

• Webservice external URL port (empty for default http(80) https(443))

sps_gui_redirect_url

• SPS GUI external URL used for redirect and autologin link creation

sebserver_client_secret

• Client secret for SEB Server binding. SEB Server must use this to connect to screen proctoring service. See also sps_sebserver_client_secret

spsgui_client_secret

• Client secret for screen proctoring GUI service binding. SPS GUI service must use this to connect to the SPS webservice

sps_init_sebserveraccount_password

• Password for the SEB Server user account that is used by SEB Server to manage SPS service data. This account is initially generated by the SPS service if it doesn’t exist

Base environment variables sebserver screen proctoring (sps) guiservice

---

NODE_ENV

• Node environment profile. “prod” for production setup

LOG_LEVEL

• Log level. Default is “info”

SERVER_PORT

• Internal service port mapping. Default is “3000”

VITE_SERVER_URL

• The external URL of the VITE server

VITE_SERVER_PORT

• The port mapping for above VITE server URL if needed. If not needed (default ports http/https) this can be empty

PROCTOR_SERVER_URL

• The external URL of the screen proctoring webservice. This can also be internal URL connection to sps-webservice

PROCTOR_SERVER_PORT

• Port mapping for above screen proctoring webservice URL if needed. If not needed (default ports http/https) this can be empty

PROCTOR_DEFAULT_URL

• Default webservice root API endpoint. Usually “/admin-api/v1”

PROCTOR_SERVER_USERNAME

• Client id name for sps-guiservice to connect to sps-webservice. Default is “spsGuiClient”

PROCTOR_SERVER_PASSWORD

• Client secret for sps-guiservice to connect to sps-webservice. Must match with spsgui_client_secret

SEB_SERVER_INTEGRATED_MODE

• Integration mode. Default is true
